Controller Dead Zones Explained: Filter Drift Without Losing Fine Control

A controller dead zone discards small analog-stick values so that electrical noise, imperfect centering, or a light touch does not become movement on screen. It can stop a camera from creeping. It cannot repair the physical reason that the stick reports movement.

The practical rule is simple: use the smallest inner dead zone that keeps the untouched stick reliably quiet, then test the rest of its travel. Outer dead zone, response curve, and anti-deadzone are separate controls. Changing all of them at once makes a controller feel different without revealing why.

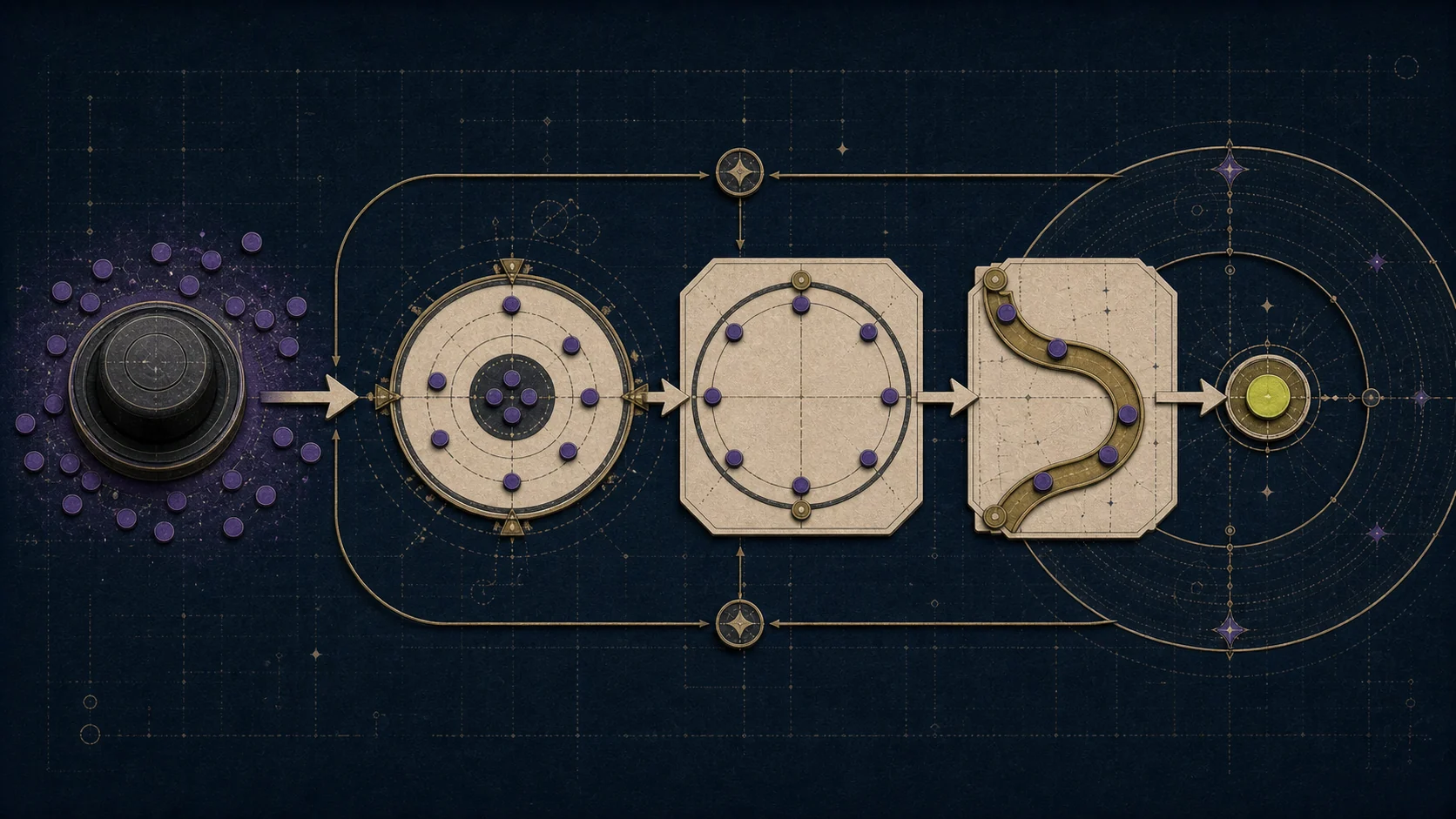

Read the stick as a signal path

An analog stick does not send “slow walk” or “turn left.” It reports two values—horizontal and vertical—that an input system turns into direction and magnitude. Several filters may sit between the raw reading and the game action.

Stage	What it decides	What a bad setting feels like
Raw input	Where the hardware says the stick is	Idle values wander or full travel is uneven
Inner dead zone	How far the stick moves before input begins	Drift if too small; a numb center if too large
Active range and outer dead zone	How the remaining travel reaches maximum output	Sprint or maximum turn arrives too late—or too early
Response curve	How output grows inside the active range	Fine aim feels nervous, heavy, or abruptly fast
Game action	What the game does with the processed value	Character movement, camera speed, steering, or a menu action

Microsoft’s XInput documentation gives one implementation example: measure the stick vector, ignore values inside a threshold, normalize the remaining magnitude, and optionally apply a nonlinear transform. Unity’s Input System documentation likewise treats lower and upper bounds as a range that can be clamped and renormalized. These are developer-facing descriptions, but they explain why two menus with the same displayed percentage may not produce the same result. The percentage belongs to a processing pipeline, not to a universal unit of feel.

Inner dead zone: quiet the center, but keep it small

The inner dead zone is the inactive area around neutral. Increase it and more small input disappears. That is useful when an untouched stick produces visible motion, but every increase also removes some deliberate travel.

Imagine a camera stick that begins to turn only after one fifth of its physical movement. Drift may be gone, yet tiny corrections now require crossing a wide silent ring. The first visible response can feel like a jump because the hand has already moved before the game acknowledges it.

That is why a dead zone should be tuned against a condition rather than copied from a preset. The condition is not “the number looks low.” It is:

With hands off the stick, the relevant action stays still across repeated checks; with a deliberate small movement, the action begins without an avoidable gap.

Controller noise varies, and a stick can settle differently after being released from different directions. Test neutral after pushing north, south, east, west, and around a slow circle. A value that behaves once is not necessarily stable.

Radial and axial dead zones do not preserve the same motion

A two-axis stick can be filtered in more than one shape.

A radial or circular dead zone evaluates the length of the combined stick vector. A small diagonal movement is treated by its total distance from the center. Microsoft’s XInput example uses this approach.

An axial dead zone filters horizontal and vertical values separately. This can make it easier to hold a pure horizontal or vertical direction, but it may suppress part of a shallow diagonal and create a cross-shaped response around the axes.

Neither shape is automatically correct for every action. Radial processing usually preserves direction consistently for free camera control, steering, and character movement. Axial assistance can be intentional where staying on a cardinal line matters. The important point is to recognise the behavior: if slow circles flatten near the axes or a diagonal appears later than a straight movement, the problem may be the dead-zone shape rather than only its size.

Outer dead zone: decide where maximum begins

The outer dead zone concerns the other end of the stick’s travel. Depending on the interface, increasing the setting may make maximum output arrive before the stick reaches its physical edge, or the menu may instead expose a “maximum input threshold.” Labels are inconsistent, so read the description and verify the result.

This control helps when the hardware does not reach a clean maximum in every direction. It can also shorten the useful range too aggressively. If a small increase near the rim suddenly becomes full-speed movement, there is less room to modulate a vehicle, walk speed, or camera turn.

Test the edge with a slow full circle. Look for directions that fail to reach maximum, then add only enough compensation to make the intended action reliable. Do not use the outer setting to cure center drift; it operates on a different part of the range.

Response curve: shape the movement that remains

After the inactive center is removed and the active range is rescaled, a response curve determines how quickly output grows. Valve describes Steam Input curves as mappings from input to output. A softer early curve can preserve a broad region for small corrections before accelerating toward maximum. A more aggressive curve produces stronger output earlier.

The curve does not recover values already discarded by an inner dead zone. If the center is too wide, making the curve more sensitive can turn “nothing, nothing, suddenly too much” into an even sharper transition. Set the quiet center first; shape the active movement second.

For camera control, validate a curve with an actual task: track the edge of a stationary object, make a one-character-width correction, then turn rapidly toward something behind you. A useful curve must support both the smallest common adjustment and the largest common turn. A settings screen trace is informative, but the game task is the final test.

Anti-deadzone is compensation, not sensitivity

Some remapping layers expose anti-deadzone. Valve’s documentation describes it as an output offset that can counter a dead zone imposed by the game. In effect, the remapper can jump over part of the game’s inactive region so that small physical movement produces a usable output.

This can help when a game has a large built-in dead zone and no suitable control of its own. It can also reintroduce idle motion or make the first response abrupt. Valve provides an anti-deadzone buffer for exactly this boundary: without a buffer, every position outside the remapper’s own dead zone may become active.

Treat anti-deadzone as a compatibility layer. Use it only after identifying that a second dead zone later in the pipeline is swallowing deliberate input. It is not a repair tool, and it should not be the first slider changed.

A ten-minute tuning pass

Use one game, one representative action, and one layer of configuration at a time.

1. Record the current values. A screenshot is enough. Disable duplicate remapping layers if you can do so safely.
2. Observe neutral. Release the stick from several directions and wait. Note whether movement is constant, intermittent, or absent.
3. Find the smallest stable inner zone. Start low and raise it in small steps until untouched movement reliably stops. If it is already quiet, lower the value until noise appears, then return to the last stable step.
4. Trace slow circles and diagonals. Look for a cross-shaped response, sudden direction changes, or a large silent center.
5. Check full travel. Move slowly around the rim and verify that maximum output can be reached in every required direction. Adjust the outer threshold only if this test fails.
6. Tune the curve last. Use the same fine-control and rapid-movement tasks after every change.
7. Validate under play conditions. Test for several minutes, including menus or radial selectors if they use the same stick. A setting that fixes the camera but breaks selection is not finished.

Change one variable, repeat one task, and keep the better result. This is the same resilience principle behind a low-bandwidth virtual tabletop setup: the useful configuration is the one whose failure mode you can identify, not the one with the most controls.

Match the symptom to the right control

Symptom	First setting to inspect	What not to assume
Camera or character moves untouched	Inner dead zone, then calibration	A larger response curve will fix it
Small deliberate movement does nothing	Inner dead zone and any game-level dead zone	The stick is necessarily broken
Fine input is possible but feels too fast	Response curve or sensitivity	The dead zone must be larger
Maximum movement is unreachable in one direction	Calibration, raw range, then outer threshold	Center filtering is the cause
Slow circles flatten along axes	Radial versus axial processing	One percentage controls every direction
First movement jumps abruptly	Large inner zone or excessive anti-deadzone	More anti-deadzone adds precision

Know when to stop filtering

Calibration should happen at the device or platform layer before elaborate compensation. Nintendo’s support guidance, for example, warns that incorrect calibration can itself cause strange response and recommends service when recalibration does not restore correct operation. The exact procedure differs by controller, so use the manufacturer’s instructions for the device in hand.

Software is no longer a satisfying answer when the required dead zone keeps growing, neutral changes significantly from session to session, full range cannot be reached, or one game-independent calibration tool shows persistent erratic input. Filtering can trade away more precision to hide the symptom, but it does not establish the physical cause.

A good dead-zone setup is deliberately unremarkable. The character stands still when the stick is untouched, moves when you intend it to, reaches full output when required, and leaves enough active travel to make small choices. Once those conditions are met, stop tuning the diagram and return to the game.
